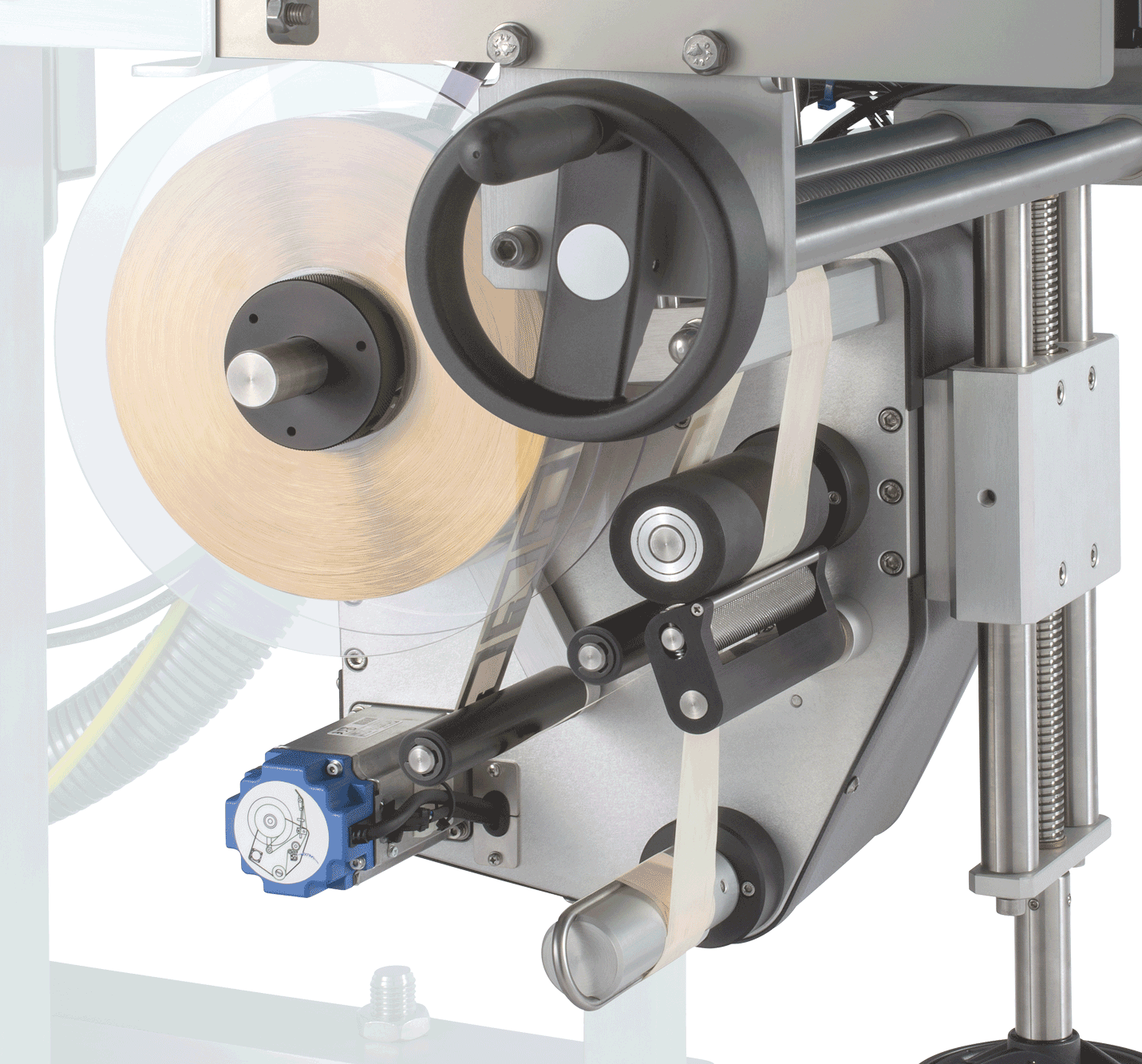

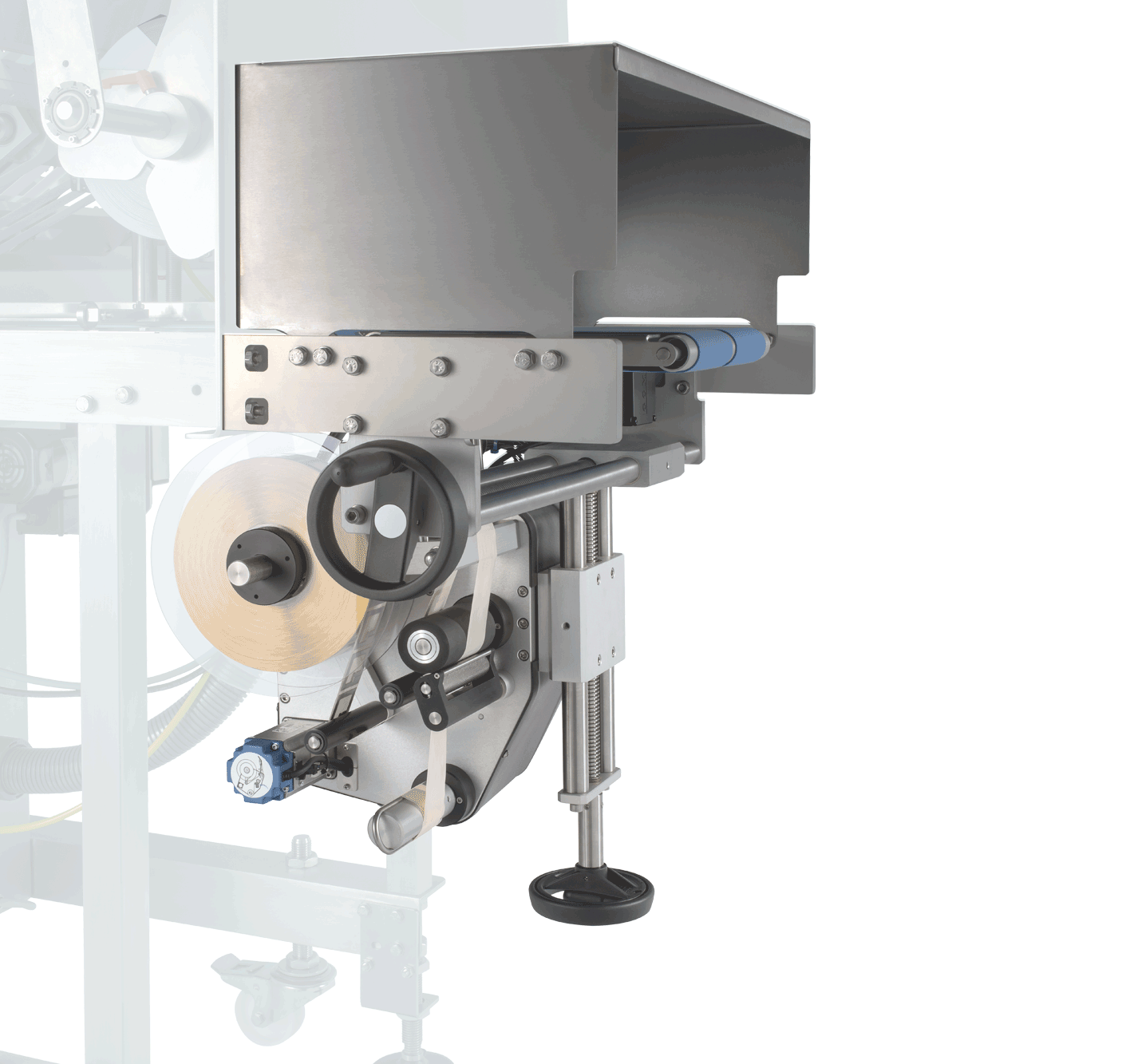

The Security/Base Labeller can be connected to any Nobac Linerless Label Applicator and applies the security/base label first so that the linerless label is laid over the top. The Nobac will run at the same number of packs per minute so production speed is not affected.
The information programmed into each label is controlled at source from an easy navigable input display panel and can be altered without the loss of a single label.
The Base Labeller is easily retro-fittable by one of our brave Raveneers.
Please note: – Due to the size and design, this label applicator cannot be fitted with a coder/printer.
Max. Web Width
85mm or 125mm
Max. Label Length
200mm
Label Reel Size
260mm O.D.
Reel Core Size
44mm or 76mm
Label Material
Self-adhesive material
Max. Linear Speed
40 metres/min
Sensing Options
Photo-electric or proximity
Drive System
Power belt via servo motor
Power Supply
110/230v 1 Phase 50/60 Hz
