Trojan Flash Labeller

Rewind

Slipping clutch via main drive

Unwind Reel Size

255mm (10″) diameter max

Label Reel Core

76mm or 44mm diameter

Linear Speed

Maximum 40 metres per minute

Electrical Supply

110/240Volts. 1 Phase. 50/60Hz

Description
Key Features
Product Description

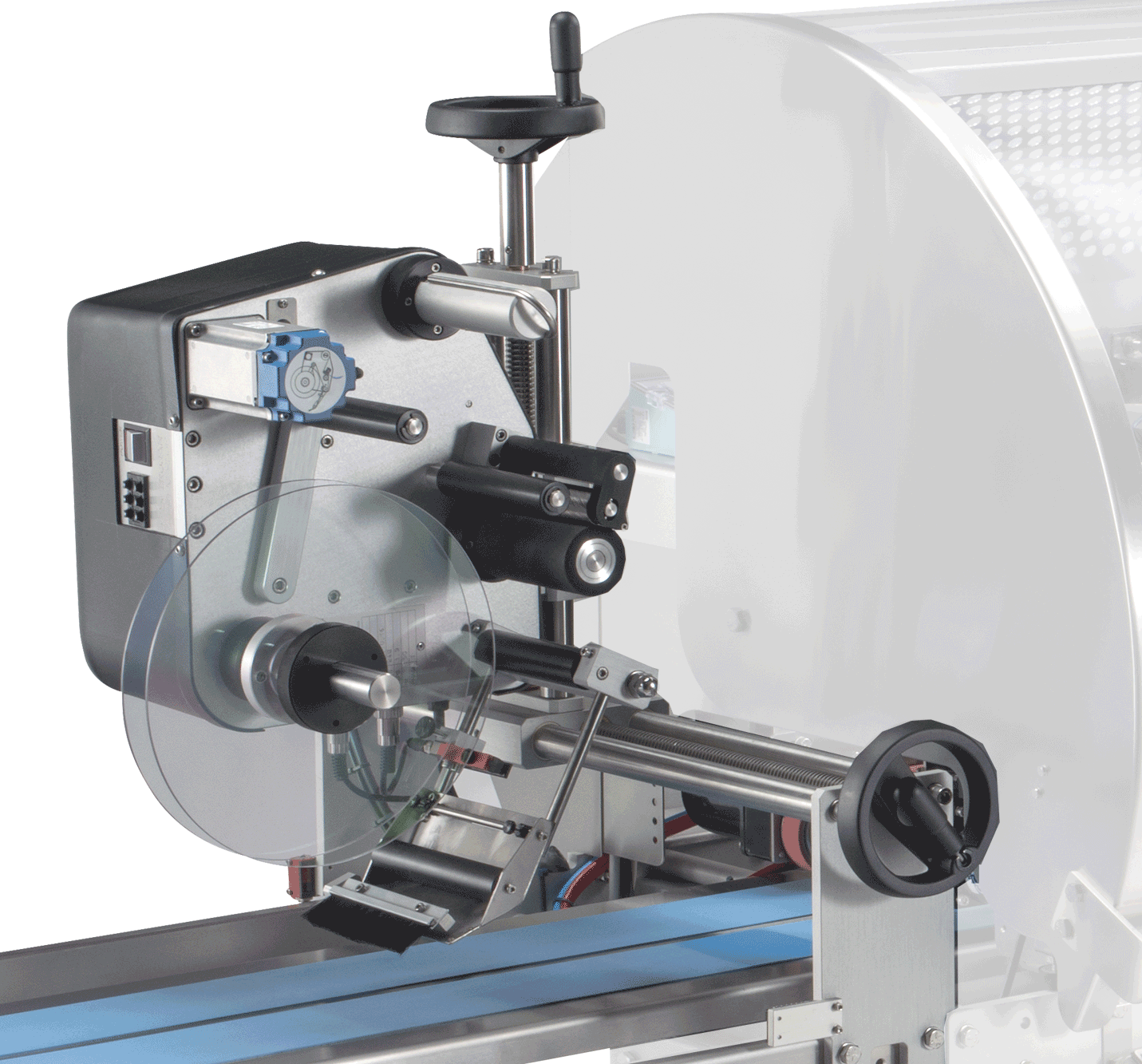

The Trojan label applicator has set new standards in self-adhesive label applications. The Trojan is an extremely small and cost effective promotional label applicator utilising a state-of-the-art servo drive unit, ideal for incorporating into most existing production lines. With its simple reliable servo drive design, the Trojan is virtually maintenance free. Controls are kept to a minimum and with its basic web path, the Trojan is extremely operator friendly. Accepting a wide range of sensing and mounting options, the Trojan can be tailored to meet the demands of virtually any label application requirement.

Key Features

Key Features

Applicator Type

Trojan (available in right or left hand)

Drive System

Brushless 400watt servo motor (belt driven)

Rewind

Slipping clutch via main drive

Label Type

Self-adhesive, outside wound (on a core)

Unwind Reel Size

255mm (10″) diameter max

Label Reel Core

76mm or 44mm diameter

Label Width

Standard TR100 model -85mm max TR140 model – 125mm max

Label Length

Minimum 25mm long. Maximum 250mm long

Label Position

Top, side or base surface of product (mountings required)

Position Accuracy

± 1.5mm. Angle ± 0.5º (dependent on product)

Linear Speed

Maximum 40 metres per minute

Mountings

Various mountings available on request

Controls

Standard panel type

Electrical Supply

110/240Volts. 1 Phase. 50/60Hz

Coding Option

Videojet 8510. 2 Line Code. 600 DPI
