VXR Vision Pack Inspection System

Our game-changing VXR® x-ray inspection system will out perform manual operations for a fully streamlined process. The VXR is the end-of-line solution provider.

Description
Product Options
Product Description

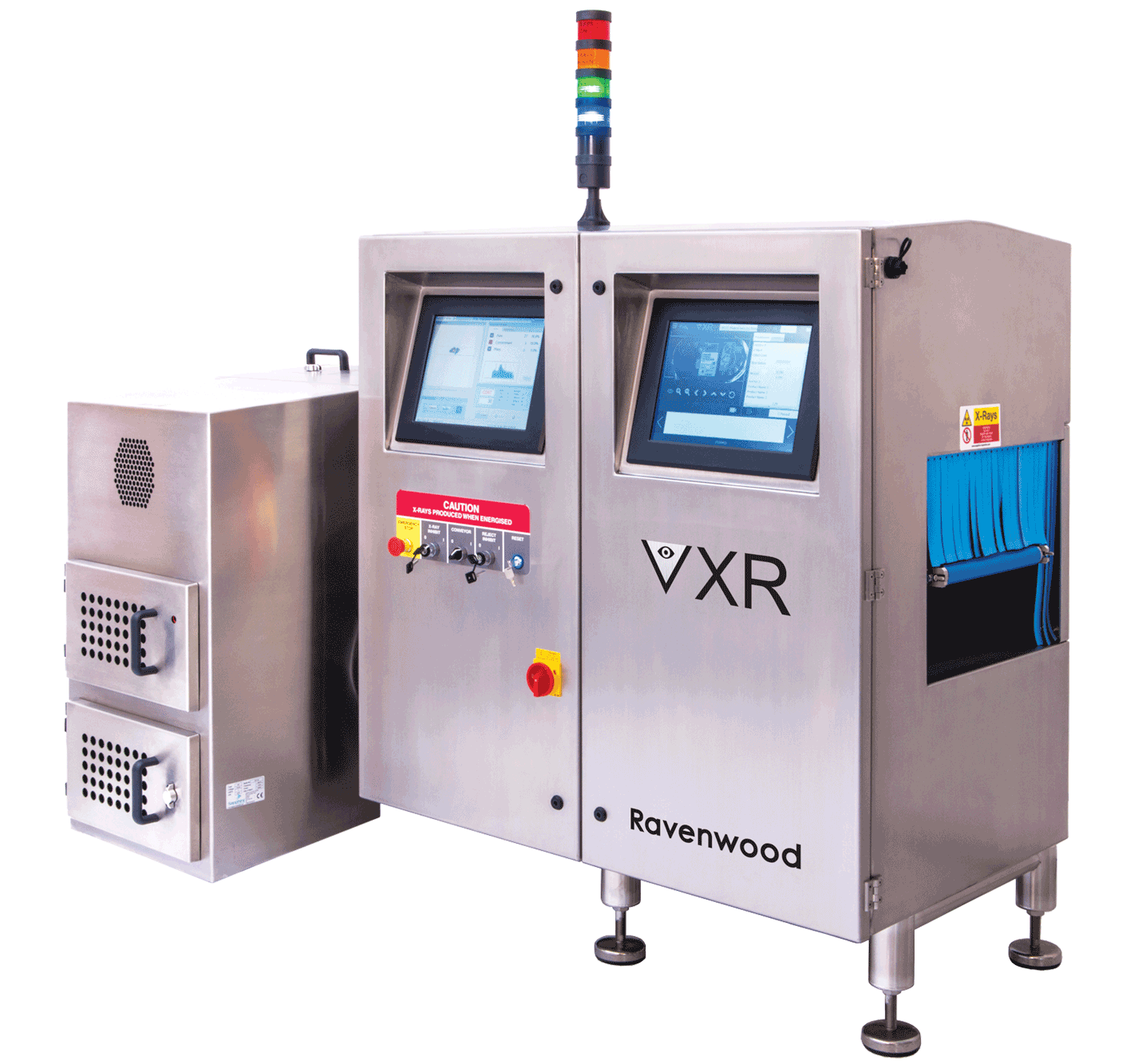

VXR Vision Pack Inspection System

VXR USPs

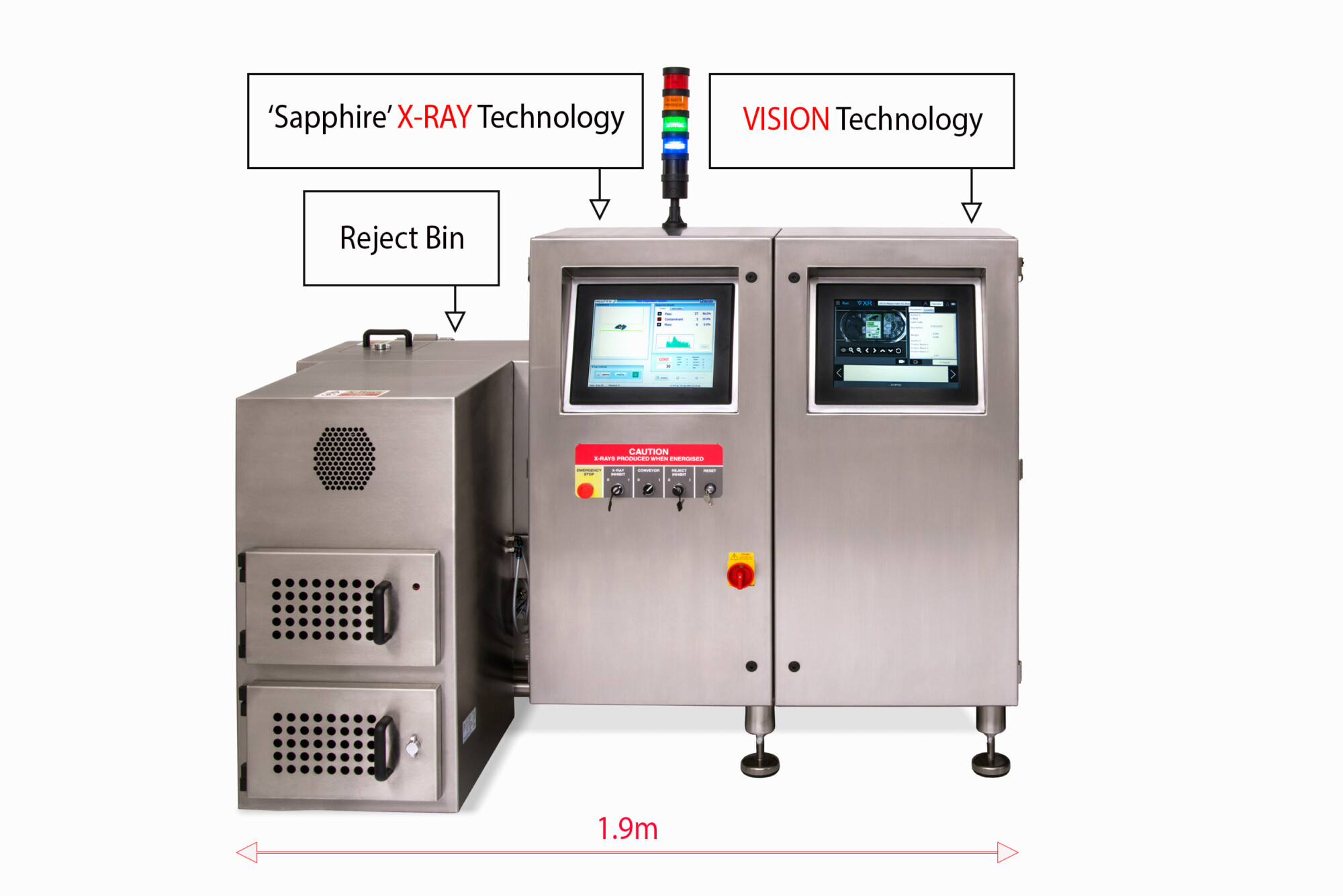

  • Total inspection incorporated into just 1.9m.
  • Avoid damaging press coverage and extortionate costs resulting from recalls.
  • Eliminate human error.
  • Increase production times.
  • Reject confirmation and bin full as standard for vision and x-ray rejects.
  • High speed user-friendly interface for rugged factory environments.
  • Pack images and pack quality information can be stored and retrieved using an open communication protocol.
X-ray
  • Heightened sensitivity for detecting dense mass / contaminants.
  • Identifies foreign bodies such as glass, metal, ceramics and bone.
  • Identifies contaminants through printed film, coloured trays and aluminium trays.
  • Locates the correct position of the product in the tray.
  • Number of products in a tray i.e. meatballs / burgers.
Vision
  • Identifies and rejects errors, enabling operator-free
    end of line automation.
  • Automatically detects faulty labels: printing errors
    and poor quality print.
  • Analyses multiple label positions, quality and orientation.
  • Checks all printed information: bar codes, use-by
    dates and traceability codes.
Seal Contamination Detection
  • Detects for contaminants in the seal including foods that have ‘slipped’.
  • X-ray functionality must be incorporated for seal inspection.
Deep Learning

OCR solution – based on established industrial grade software.

  • New module for adding to the Vision Application on the VR and VXR machines.
  • Module uses Deep Learning to analyse the characters in the field of interest.
  • Choice of pre-learned character sets available to rapidly decode many characters.
  • Set up of the Deep Learning OCR field is similar to the conventional set up in the new or edit product screens.
  • Does not require the font to be taught as is the case with conventional OCR for new fonts.
  • Conventional OCR remains available in the app.
  • New version requires an additional licence and USB dongle to be installed.
  • Also available on new order machines as part of the machine build.
Anti-Reflection
  • Software minimises glare and reflections on flow wrap packs.
  • Improved image processing combined with enhanced illumination.
  • Retrofittable into existing Vision systems.
  • Supplied as an optional extra on new machine orders.
  • Standard packs can still be inspected as usual.



View Product Brochure

Product Options

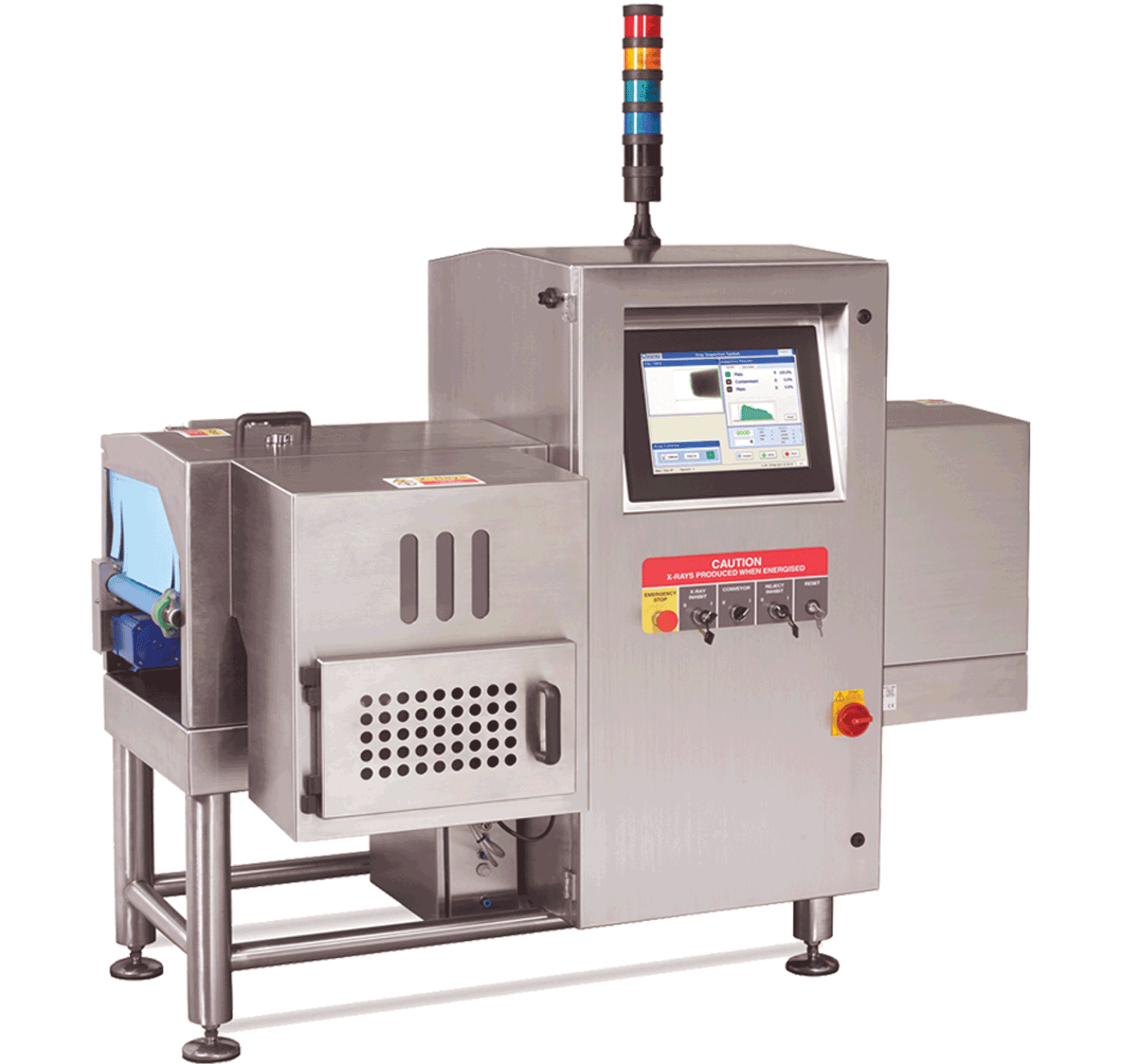

XR Option

  • X-ray contamination.
  • X-ray seal inspection.
  • Vision upgradable.

VR Option

  • Vision label inspection.
  • Upgradeable.

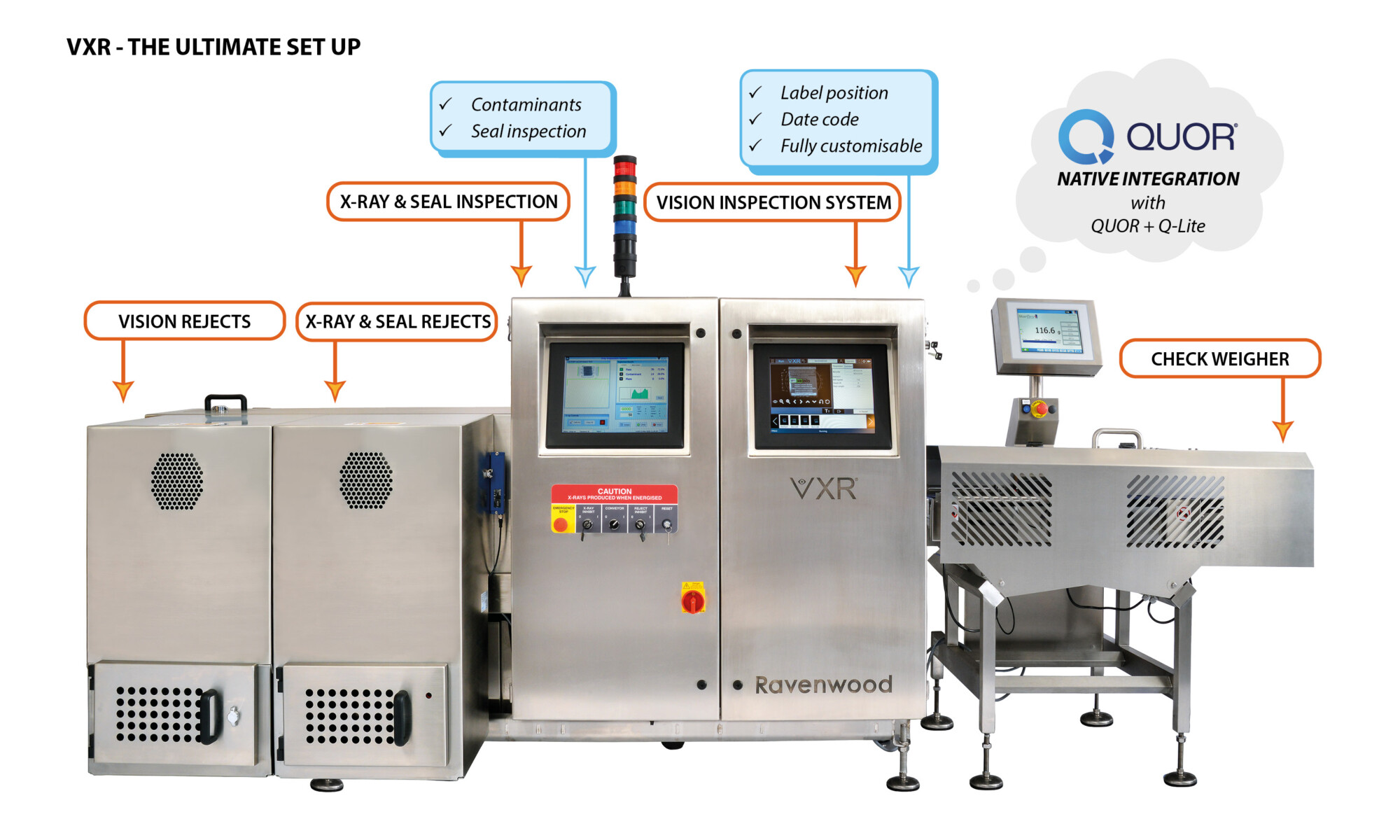

VXR + Nobac 5000 Option

  • Vision label inspection.
  • X-ray contamination.
  • X-ray seal inspection.
  • Nobac 5000 – for applying faultless linerless labels to food trays.

QUOR Quality Management System

  • QUOR allows for product selection and storage of quality data.
  • Products are selected for checking on the QUOR interface.
  • Line quality data is uploaded, captured, stored and reported for analysis, and traceability.
  • Images of all packs produced including rejected packs are recorded and can be retrieved.
  • Retailer compliant KPI reports can be generated at the click of a button.
  • Data is managed securely both on and offsite, via PC based software or QUOR quality management app.
