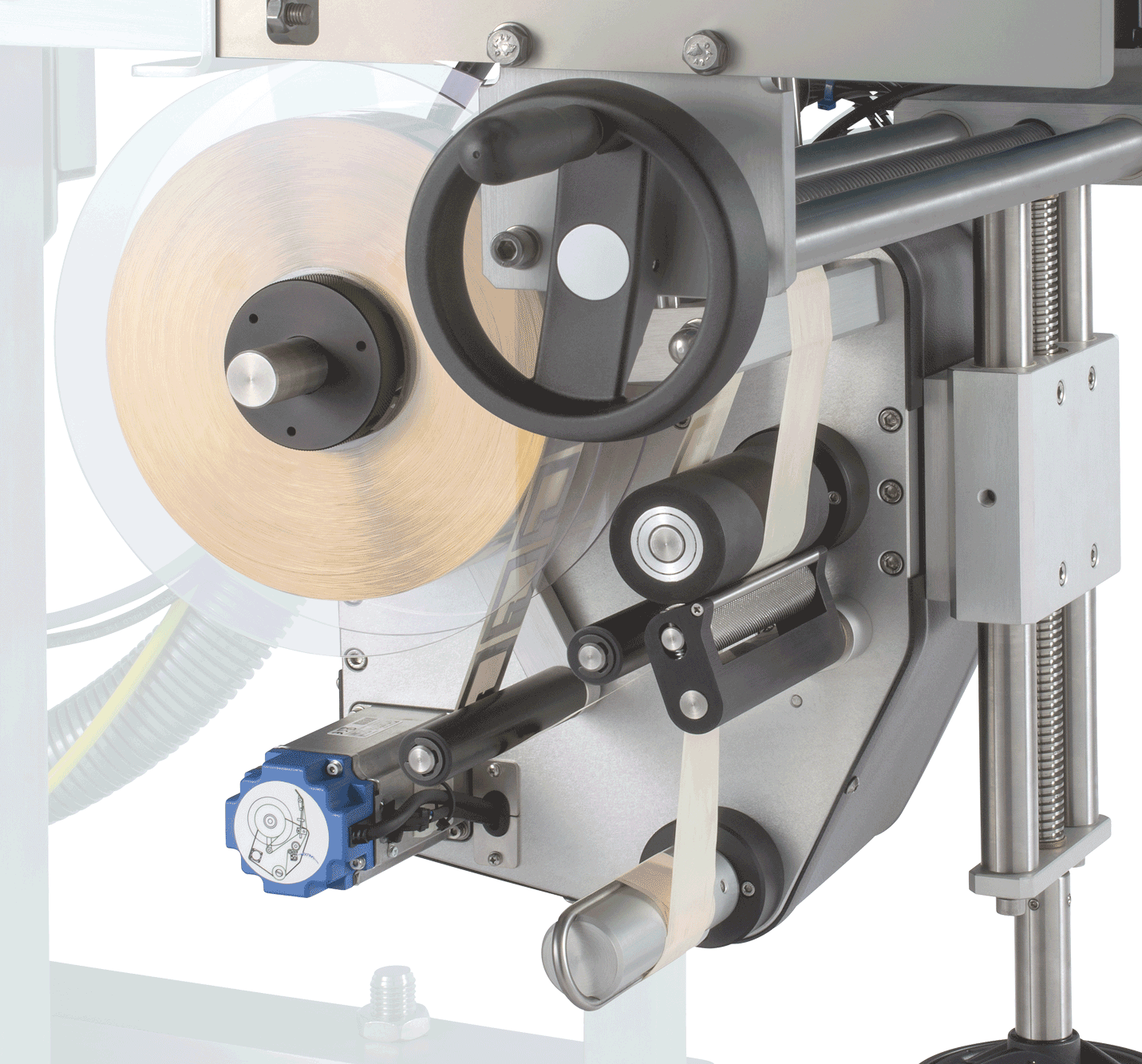

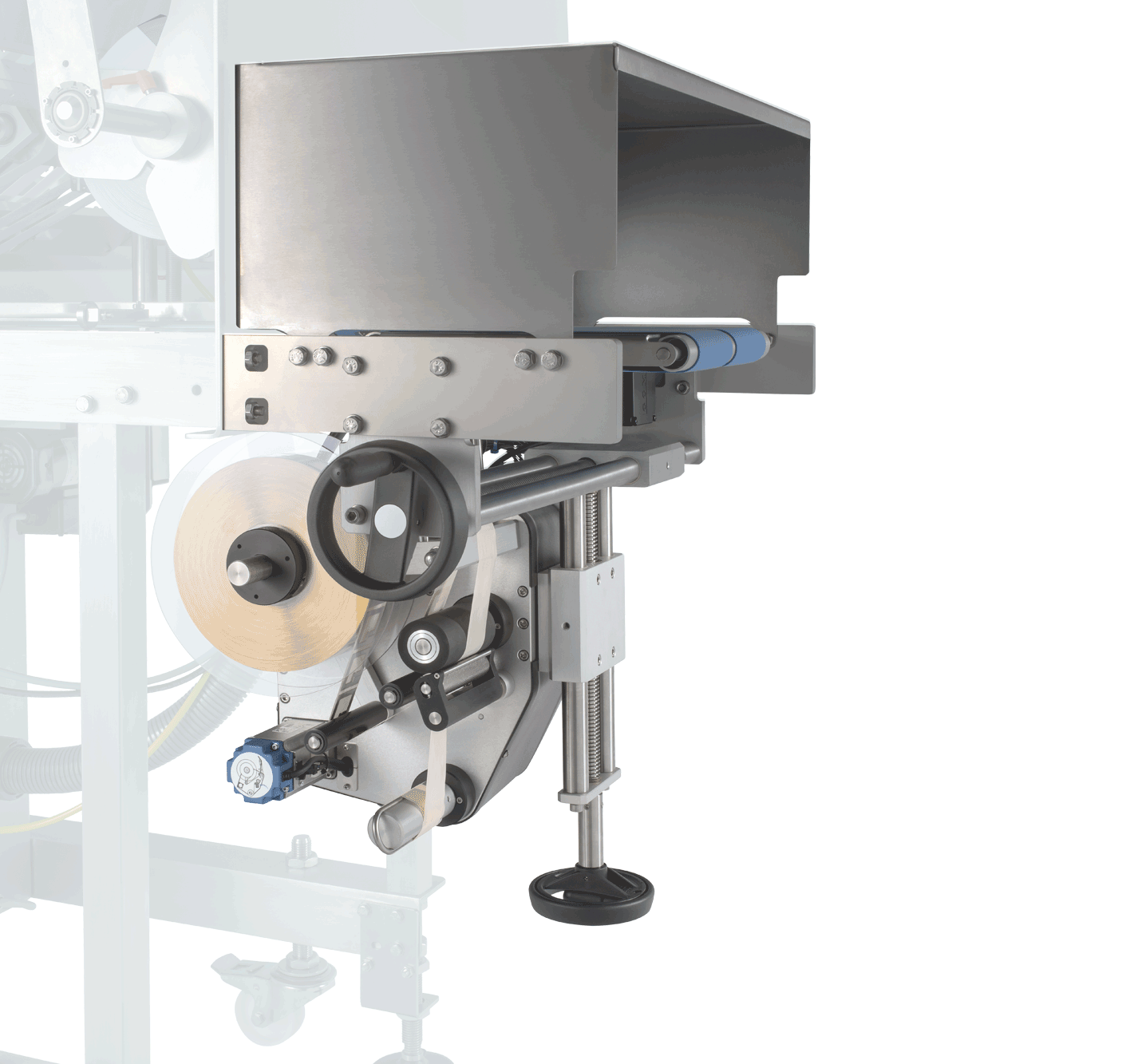

Trojan Security Base Labeller

Max. Web Width

85mm or 125mm

Max. Label Length

200mm

Label Reel Size

260mm O.D.

Reel Core Size

44mm or 76mm

Label Material

Self-adhesive material

Max. Linear Speed

40 metres/min

Description
Key Features
Product Description

The Security/Base Labeller can be connected to any Nobac Linerless Label Applicator and applies the security/base label first so that the linerless label is laid over the top. The Nobac will run at the same number of packs per minute so production speed is not affected.

The information programmed into each label is controlled at source from an easy navigable input display panel and can be altered without the loss of a single label.

The Base Labeller is easily retro-fittable by one of our brave Raveneers.

Please note: – Due to the size and design, this label applicator cannot be fitted with a coder/printer.

Key Features

Key Features

Max. Web Width

85mm or 125mm

Max. Label Length

200mm

Label Reel Size

260mm O.D.

Reel Core Size

44mm or 76mm

Label Material

Self-adhesive material

Max. Linear Speed

40 metres/min

Sensing Options

Photo-electric or proximity

Drive System

Power belt via servo motor

Power Supply

110/230v 1 Phase 50/60 Hz
