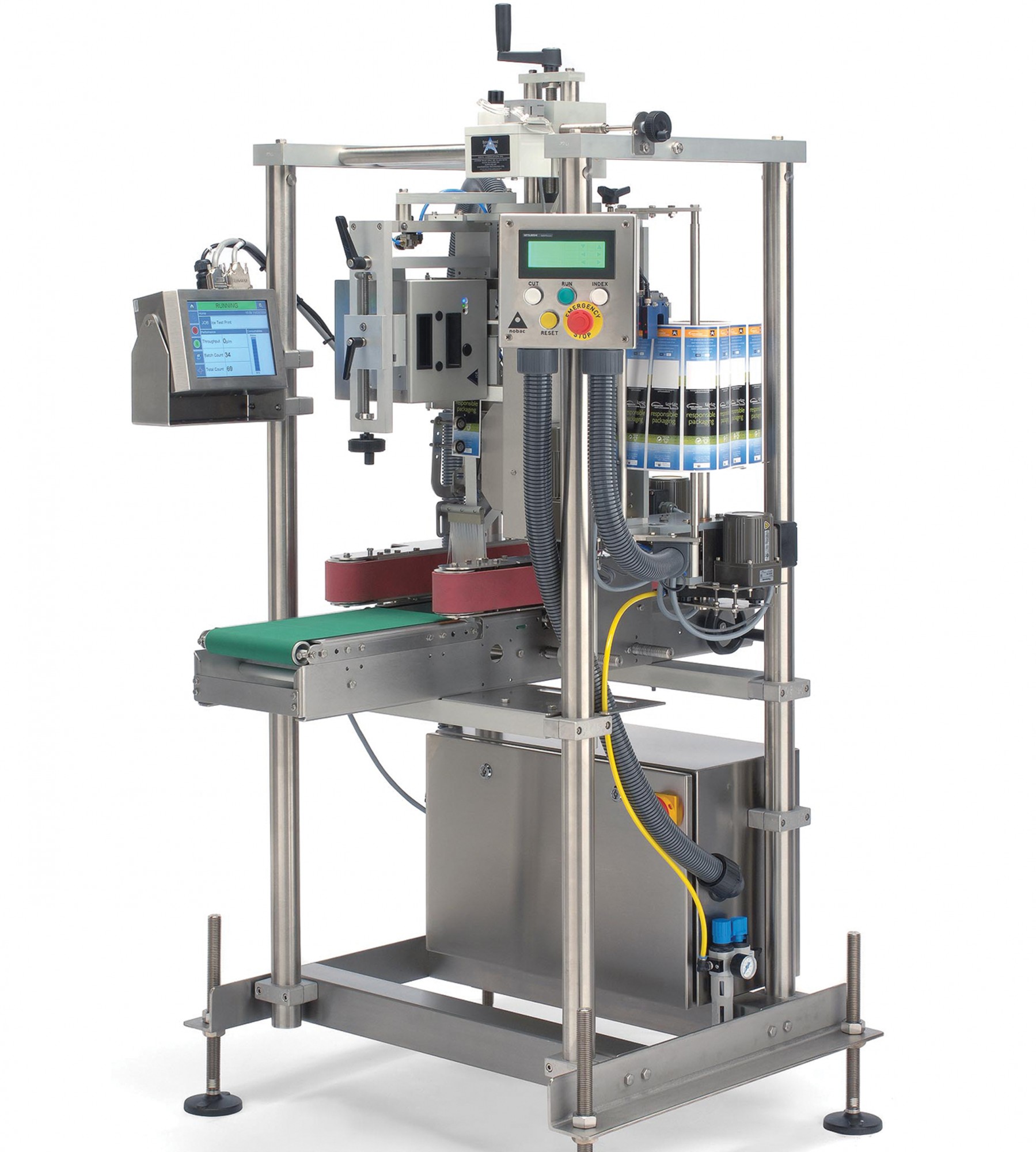

Nobac 400V


The remarkable 400V is a vertical labeller capable of labelling irregular packs such as whole birds as well as C-wrapping regular-shaped packs. It has been designed to control both ends of the label in the feed system, improving positional accuracy of the label around the package.
The feed system is independent of label length and conveyor speed, allowing longer labels to be run without loss of throughput: a great improvement over other solutions. With ever-increasing information (and therefore label length) this can help productivity. The labels may be supplied in a range of weights and materials – including paper and polypropylene. Transparent labels can also be produced and applied. Round and square bottles are capable of being labelled at speeds of up to 180 per minute.
 For a comprehensive overview of all our machines labelling types and capabilities, see the Linerless Options Section.

Label/Sleeve
height mm
Label/Sleeve
width mm
Pack height
mm
Speed
ppm
Power Supply
v/Hz
Consumption
kW
30080120*75*230/500.4
uses single phase power n.b. air supply for optional printer. *up to & inc.
