Nobac 5000R – Ready Meal Linerless Applicator

Label length mm

500

Label/Sleeve width mm

100-225

Pack height mm

120*

Speed ppm

65*

Power Supply v/Hz

230/50

Consumption kW

0.5

Air Consumption cfm

4

Description
Key Features
Label Formats
Product Description

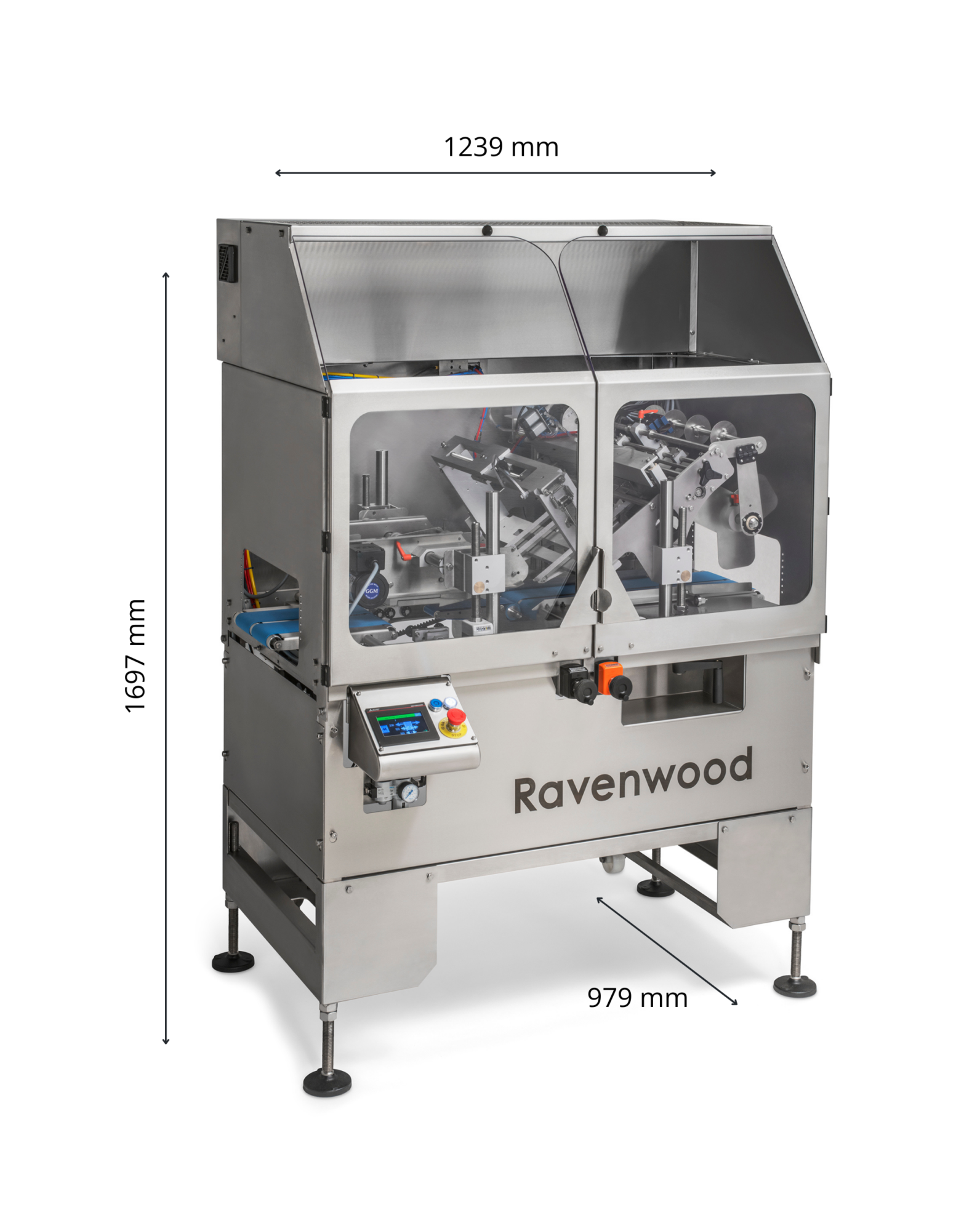

NOBAC 5000R

The Nobac 5000R machine has been developed and tailored in line with applying ready meal packs and slideable sleeves. The applicator features all of the benefits of the Nobac 500R model with increased capacities.

  • Slightly longer than other machines in the Nobac range but still compact.

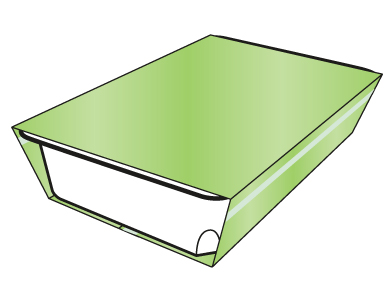

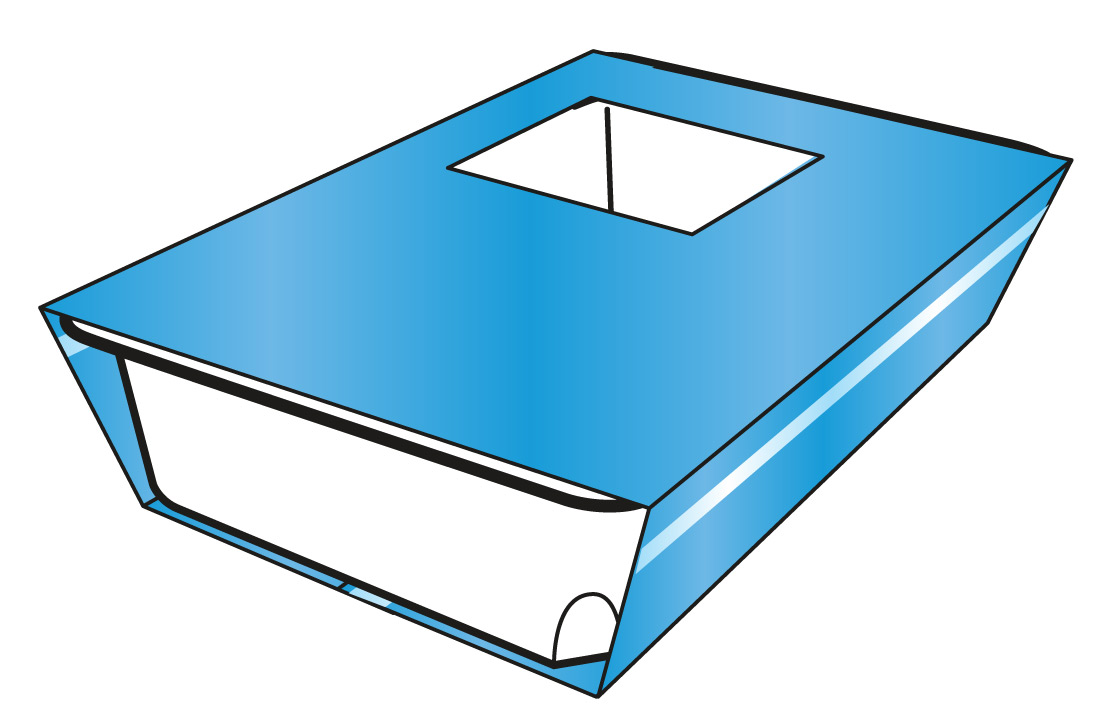

  • Applies ready meal sleeves including ‘punched’ formats.
  • Many label formats including top labelling, die cut and shaped.

Uses single phase power and air supply of 5bar 70psi 4cfm
*General range for system. Specific label sizes and speeds agreed at time of build

View Product Brochure

Key Features

Key Features

Label length mm

500

Label/Sleeve width mm

100-225

Pack height mm

120*

Speed ppm

65*

Power Supply v/Hz

230/50

Consumption kW

0.5

Air Consumption cfm

4
