Nobac 5000T – Twin Head Linerless Applicator

Label length mm

500

Label/Sleeve width mm

55-125mm*

Pack height mm

120*

Speed ppm

150*

Power Supply v/Hz

230/50

Consumption kW

0.6

Air Consumption cfm

Description

Key Features

Label Formats

Product Description

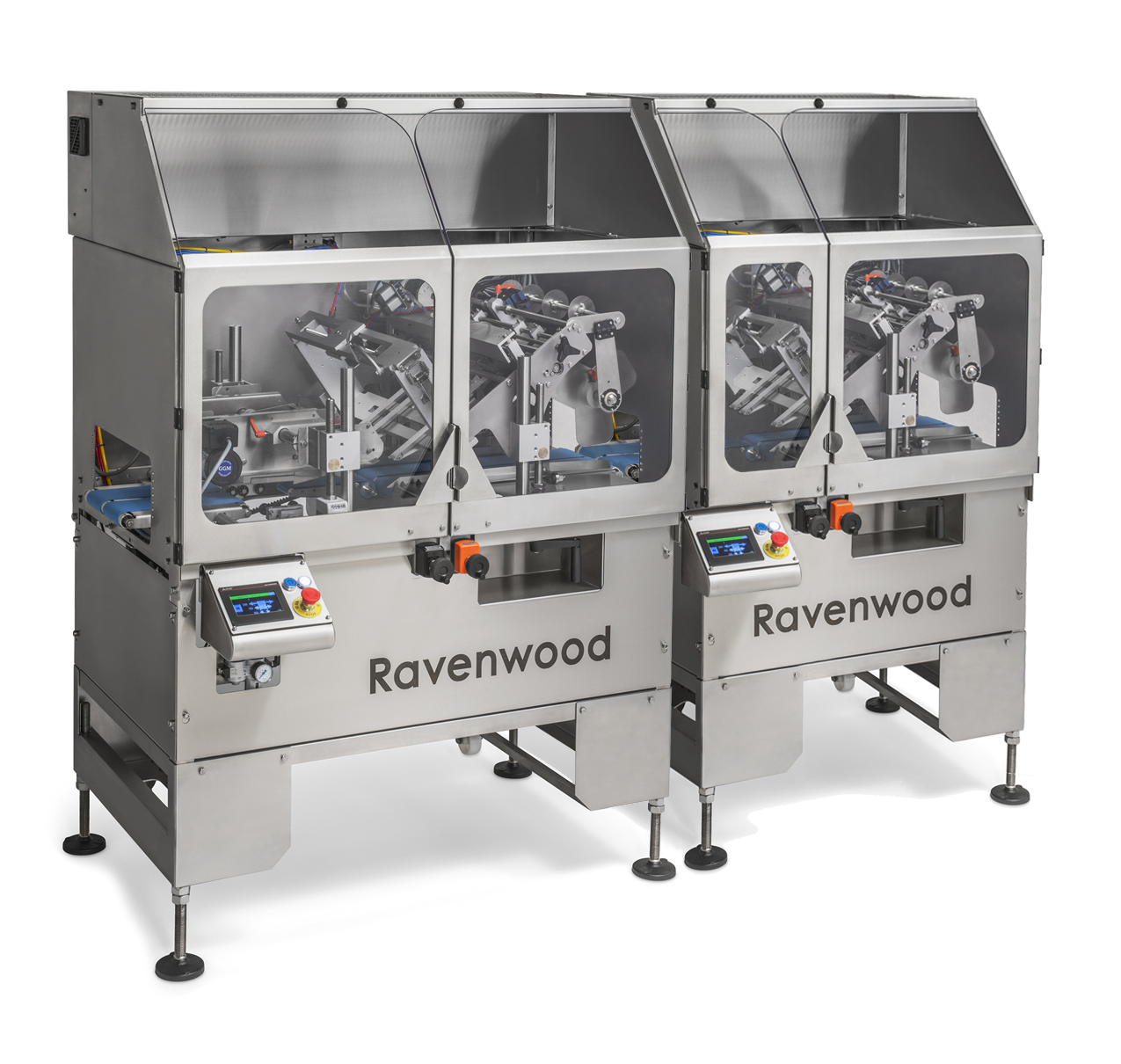

The Nobac 5000T twin sleever is a new modular system, building on the functionality of Nobac 500T machine. Meeting the requirements of today’s retailers and packers needs for higher speeds, less downtime and quicker product changes.

Enables continuous operation with two labelling heads in line.
Ability to swap between heads to allow label reels or thermal printer ribbon to be changed on the unused head.
Allows preparation in readiness for labelling the next product.

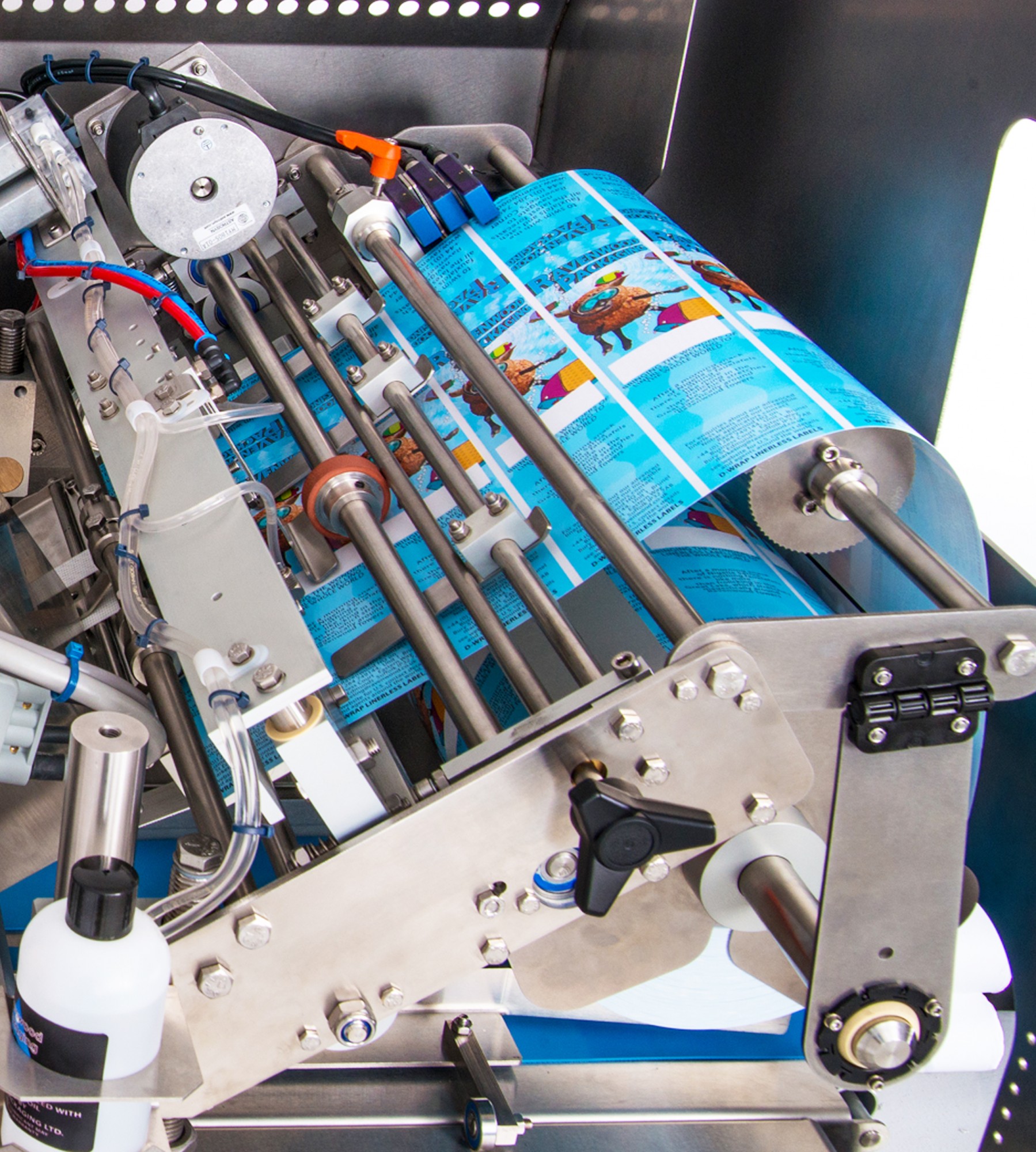

Features two independent covers for label cutting and feeding mechanisms to enable packs to pass on either of the heads.
Continuous application of promotional labels achieved using a Trojan Flash labeller.
Many label formats including top labelling, die cut and shaped.

Uses single phase power and air supply of 5bar 70psi 4cfm
*General range for system. Specific label sizes and speeds agree at time of build

View Product Brochure

Key Features

Label length mm

500

Label/Sleeve width mm

55-125mm*

Pack height mm

120*

Speed ppm

150*

Power Supply v/Hz

230/50

Consumption kW

0.6

Air Consumption cfm

Label Formats

Top Label

Top and Side

Top & 2 Sides

Full Wrap

Slideable Full Wrap

Skin Pack Full Wrap

D-Wrap

Landscape C Wrap

Skin Pack Full Wrap Protruding up to 25mm above height of tray

Full Wrap Shaped
