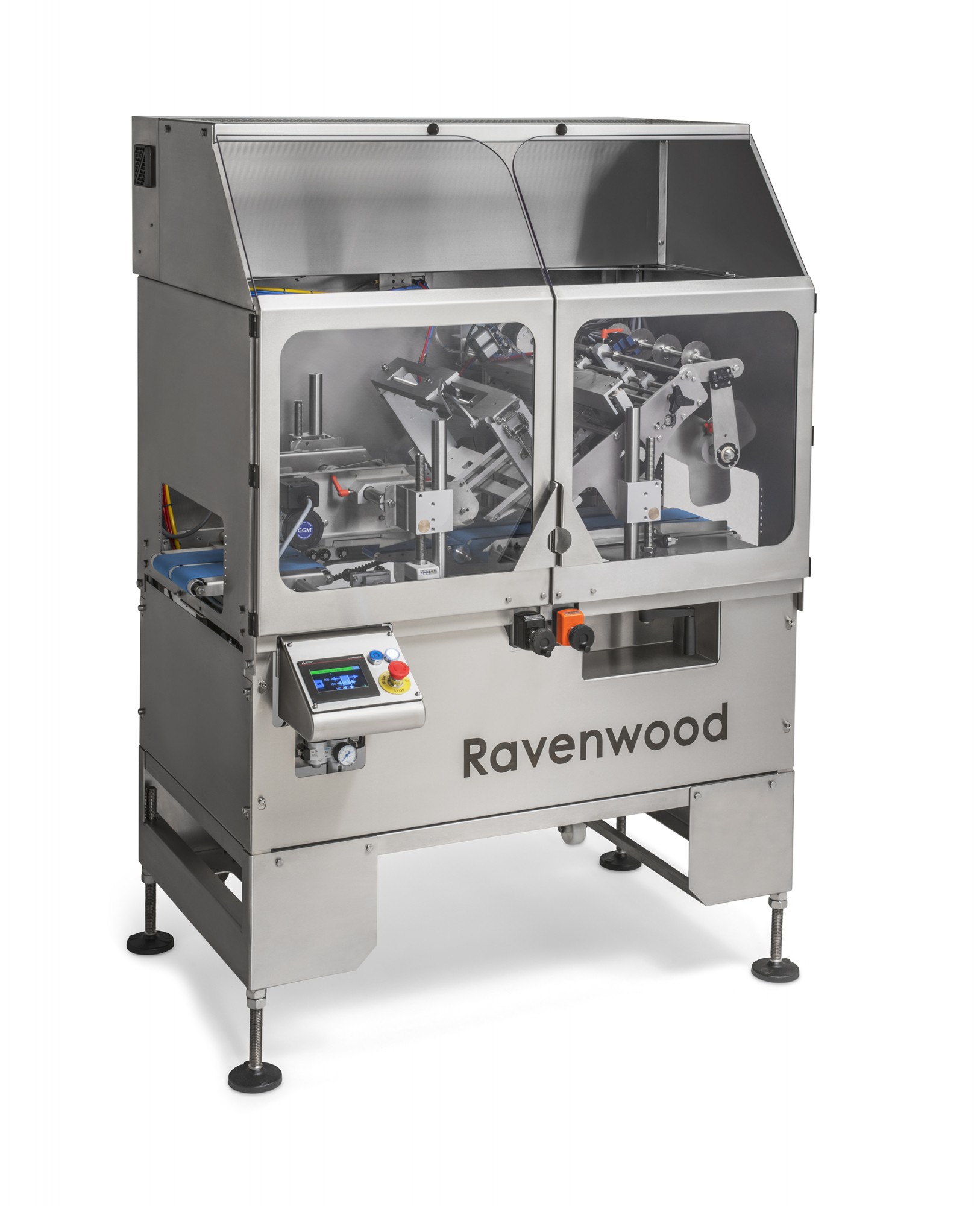

Nobac 5000L – Fruit Linerless Applicator

Label length mm

500*

Label/Sleeve width mm

100-225mm*

Pack height mm

120*

Speed ppm

70*

Power Supply v/Hz

230/50

Consumption kW

0.5

Air Consumption cfm

4

Description
Key Features
Label Formats
Product Description

The Nobac 5000L fruit linerless applicator applies linerless ‘Fruit Lids’ to fruit and vegetable products:

  • Suitable for narrow/wide fruit and vegetable trays
  • 1×2, 1×3, 1×4 and 2×2, 2×3 tray formats
  • Linerless ‘fruit lids’ are applied to board trays to form a complete pack
  • Lids can be supplied in a range of weights for different products and tray formats
  • Eliminates single use plastic
  • Food grade label material available 170gsm to 300 gsm thickness

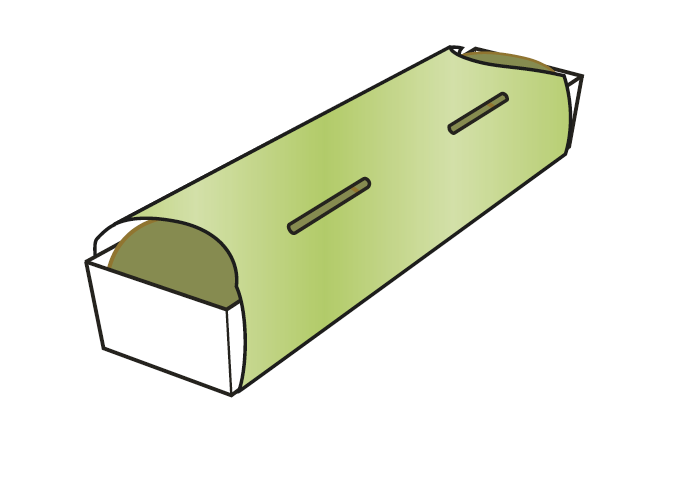

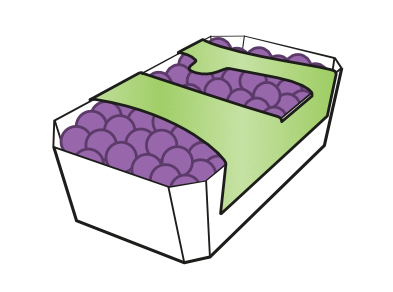

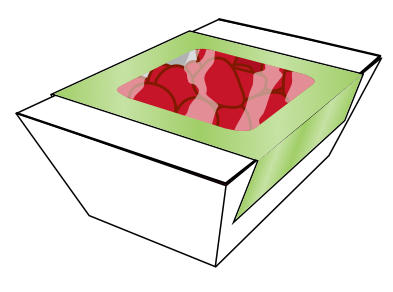

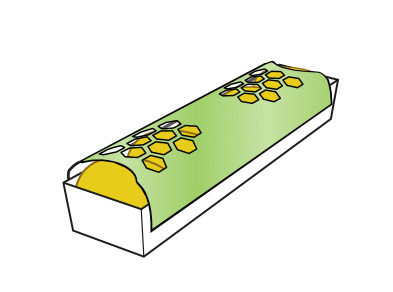

  • Shaped and cutout labels for visual appearance of product
  • Modular construction for flexibility of use and machine configuration
  • Thermal ink jet coding unit for printing direct onto Fruit Lid
  • Pack Speeds up to 75* per minute
  • Connections to weigh price labeller for catchweight, fixed weight or average weight labelling
  • Linerless fruit lids and board trays are sustainable and kerbside recyclable

Uses single phase power and air supply of 5bar 70psi 4cfm
*General range for system. Specific label sizes and speeds agreed at time of build

View Product Brochure

View Tomeco ‘Fruit Lid’ CASE STUDY>



Key Features

Key Features

Label length mm

500*

Label/Sleeve width mm

100-225mm*

Pack height mm

120*

Speed ppm

70*

Power Supply v/Hz

230/50

Consumption kW

0.5

Air Consumption cfm

4

Label Formats
